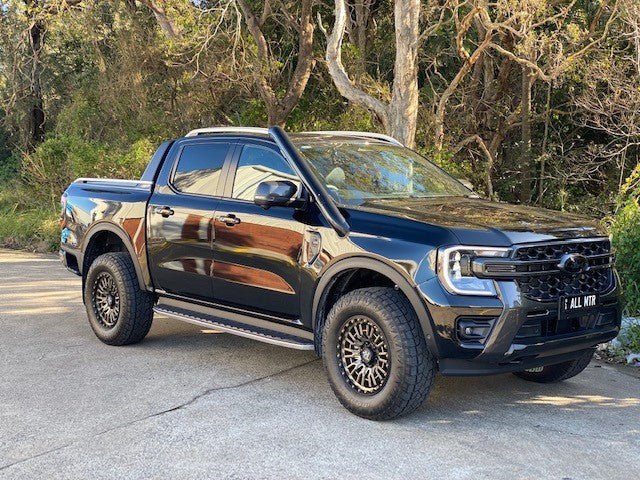

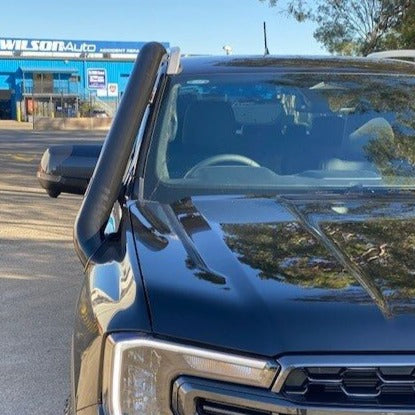

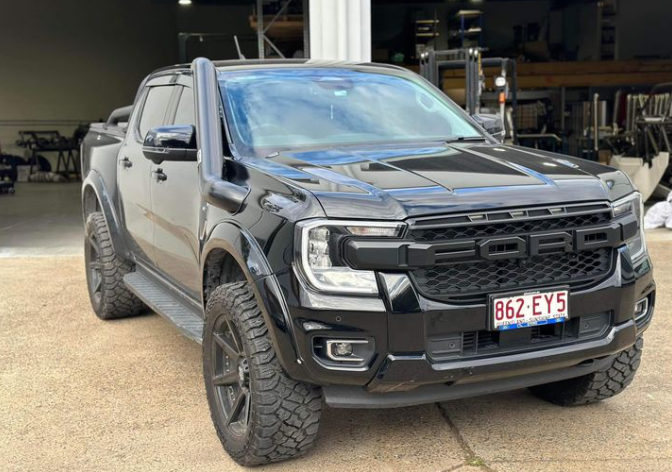

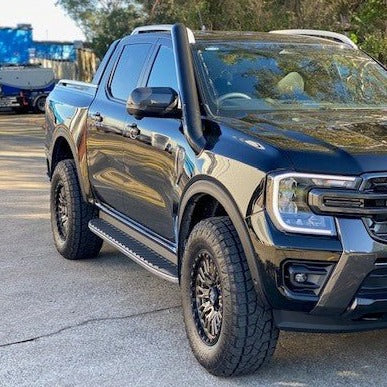

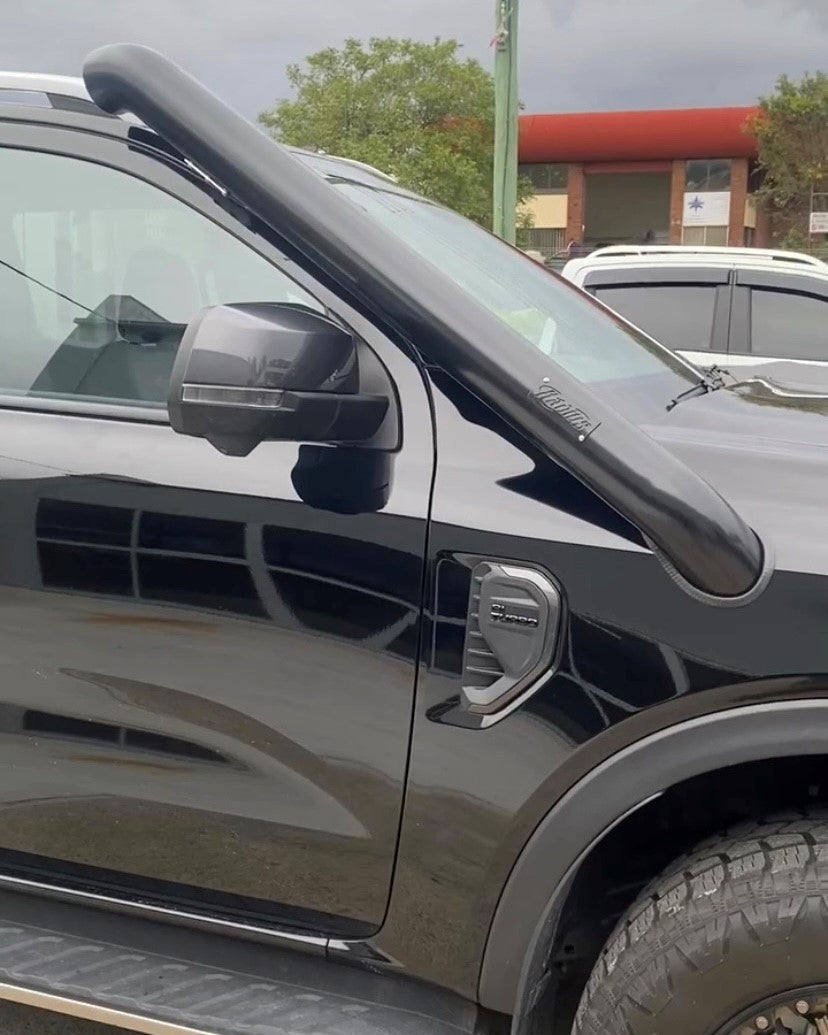

Next Gen Ford Ranger 4" Short Entry Stainless Steel Snorkel

The Radius Fabrications 4" Stainless Snorkel to suit the Next Gen Ford Ranger is built for performance, protection, and premium looks.

This snorkel is designed to deliver maximum airflow to your engine while offering the protection your Ranger should have come with from the factory. Combining elevated cold air intake above the roofline with reduced dust exposure gives your engine cleaner, cooler air improving performance and helping your filters last longer.

Fabricated in-house from 316-grade stainless steel, each snorkel is hand-built for strength, corrosion resistance, and style. Choose between polished, powder-coated, seamless, or powder-coated seamless finishes to suit your build and style.

Whether you’re tackling deep crossings, off-road tracks, or simply want to stand out on the street, the Radius Fabrications snorkel delivers both rugged performance and head-turning appearance.

Key Features

• Suits Next Gen Ford Ranger (2.0L Bi-Turbo & 3.0L V6 engines)

• 4” 316 marine-grade stainless steel construction

• Available in polished, satin black powder coat, or seamless finish

• Designed for maximum airflow and superior engine protection

• Raises air intake above roofline for cleaner, cooler air

• CNC CAD-designed guard template for precise fitment

• Proudly designed and fabricated in Australia

• Includes washer bottle replacement for complete installation

• TIG welded for strength and precision craftsmanship

Kit Includes

Each Radius Fabrications Next Gen Ranger Snorkel Kit includes:

• 4" Short Entry Stainless Steel Snorkel

• CAD-designed cutting template

• Silicone joiners

• Hose clamps

• Mounting brackets

• Replacement washer bottle

• Step-by-step installation instructions

Recommended tools: Air hacksaw or body saw for clean guard cutting.

Installation

Installation is straightforward for experienced DIYers or professionals. Typical install time is 3–5 hours.

1. Use the provided CAD template to mark and cut your guard.

2. Mount the snorkel using supplied brackets and hardware.

3. Connect the silicone joiners to the airbox and tighten hose clamps.

4. Check all fittings for alignment and seal integrity.

5. Refit the washer bottle supplied with the kit.

This snorkel is compatible with:

• Factory airbox

• Radius Fabrications airbox

• Aftermarket 3”, 3.5”, or 4” airboxes

The only difference between configurations is the silicone hose supplied.
Unless specified at checkout, standard shipping will include silicone to suit the factory airbox.

We recommend professional installation to ensure precise fitment and watertight sealing.

Frequently Asked Questions

Is it compatible with both the 2.0L Bi-Turbo and 3.0L V6 engines?
Yes. The initial R&D was conducted on the Bi-Turbo model, and the kit suits both the Bi-Turbo and V6 engine variants.

Will I need to modify my fender or other parts of the vehicle?
No additional modification is required beyond the guard cut, but we recommend sending photos of your vehicle to confirm suitability before purchase.

Does the snorkel interfere with roof racks, light bars, or other accessories?
No, in most cases it will not. However, please send photos if you have aftermarket accessories installed so we can confirm compatibility.

Will the Radius Fabrications snorkel cover the factory snorkel?
No, this snorkel is not designed to cover the factory snorkel position. If you wish to explore a custom setup, please send us images of your vehicle for review.

Will the Radius Fab airbox work with an aftermarket snorkel?
In most cases, yes. We just need to know what snorkel you’re running — please include pictures to confirm fitment.

Does the vehicle require tuning after installing this snorkel or airbox?
No tuning is required. The Radius Fabrications airbox and snorkel are designed to improve airflow and filtration while remaining fully compatible with the stock engine management system.

Is the snorkel watertight?
Yes. Our snorkels are TIG-welded and sealed for watertight performance, but proper installation is key. Check all joints and seals before completing your setup.

Do you ship internationally?
Yes, Radius Fabrications ships worldwide. Contact us for a detailed shipping quote and lead time.
